Assault riffle
5.56x45 mm and 7.62x39 mm AR-SF
Caliber
5.56/7.62
Barrel length, mm
215/215
Magazine capacity
30/30

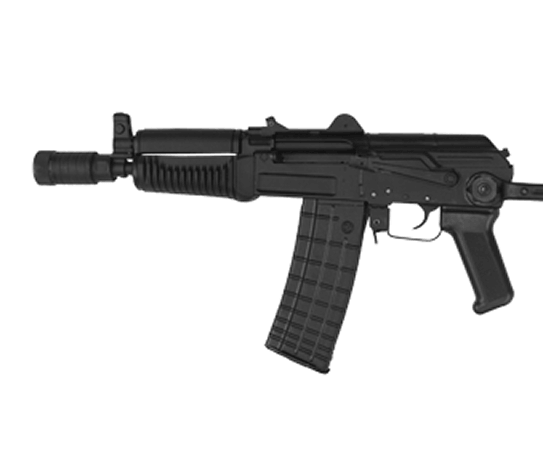

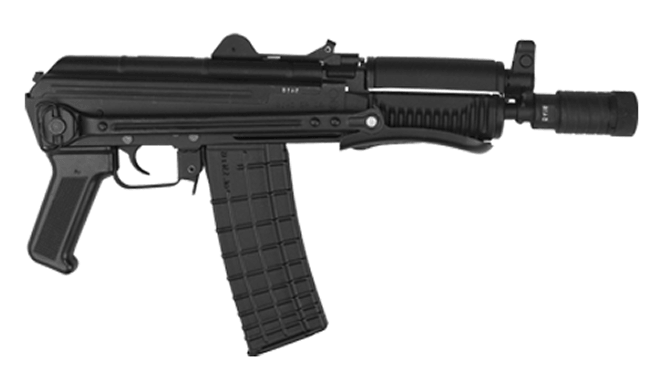

5.56x45 mm ARSENAL Assault Rifle AR-SF with short barrel and folding butt
NSN: 1005-50-000-1045

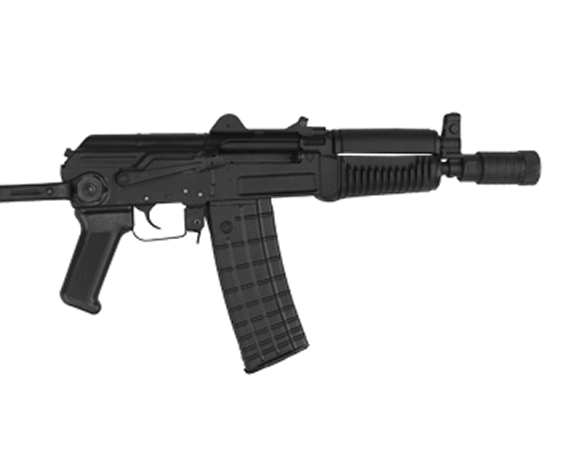

7.62x39 mm ARSENAL Assault Rifles AR-SF with short barrel and folding butt
NSN: 1005-50-000-0212
The 5.56 mm AR-SF and 7.62 mm AR-SF are highly effective automatic weapons, used as armament of combat crews, reconnoitring detachments, special antiterrorist and police troops, and security services.
- Receiver, made from hot die forged solid blank followed by milling operations;
- Chromium plated Barrel, manufactured by the method of cold radial forging, providing bigger hardness and better structure of the material;
- Arcuate staggered Magazine, manufactured from glass fiber reinforced polycaproamide;
- Lower hand guard, Upper hand guard, and Pistol grip, made from glass fiber reinforced polycaproamide;
- Metal down-folding butt.
- Receiver, made from hot die forged solid blank followed by milling operations;
- Chromium plated Barrel, manufactured by the method of cold radial forging, providing bigger hardness and better structure of the material;
- Arcuate staggered Magazine, manufactured from glass fiber reinforced polycaproamide;
- Lower hand guard, Upper hand guard, and Pistol grip, made from glass fiber reinforced polycaproamide;
- Metal down-folding butt.
| AR-SF | AR-SF | |
|---|---|---|
| Calibre, mm | 5.56 | 7.62 |
| Cartridge, mm | 5.56 × 45 | 7.62 × 39 |
| Fire mode | single, automatic | single, automatic |
| Rate of fire, rounds/min | 600 | 600 |
| Practical rate | ||
| • automatic fire | up to 100 | up to 100 |
| • single fire | up to 40 | up to 40 |
| Muzzle velocity, m/s | 790 / 730 | 600 |
| Sighting range, m | 500 | 500 |
| Maximum firing range, m | 1100 | 1100 |
| Effective firing range, m | 300 | 250 |
| Magazine capacity, rounds | 30 | 30 |
| Barrel length, mm | 215 | 215 |
| Sight radius, mm | 240 | 235 |
| Overall length | ||
| • extended butt | 750 | 750 |
| • folded butt | 500 | 500 |
| Weight, kg | ||
| • rifle | 3.1 | 3.1 |
| • loaded magazine | 0.58 | 0.72 |
| System life, rounds | 15 000 | 15 000 |
| Principle of function | gas operated | gas operated |
| Sling | ||
| Box with accessories (brush, drift, slush brush (cal. 5.56)/ scourer (cal. 7.62), screwdriver) | ||
| Bag for magazines | ||
| Oil can | ||
| Practical rate | ||
| Magazine 4 pcs: 5.56x45 mm 7.62x39 mm |
| Number of rifles in one wooden case | 10 |
| Case dimensions, mm | 1211x572x356 |
| Gross Weight of the wooden case, kg | 80 |
| Volume of the wooden case, m3 | 0.25 |
